Yidimu Flex Pro Flexible Resin 3D Printer
Flex Pro is designed for professional users who need stable printing of flexible and elastic resin structures. It supports custom-sized elastic components, single-part forming and small-batch flexible part production for applications such as footwear development, sports equipment, medical rehabilitation accessories and soft wearable components.

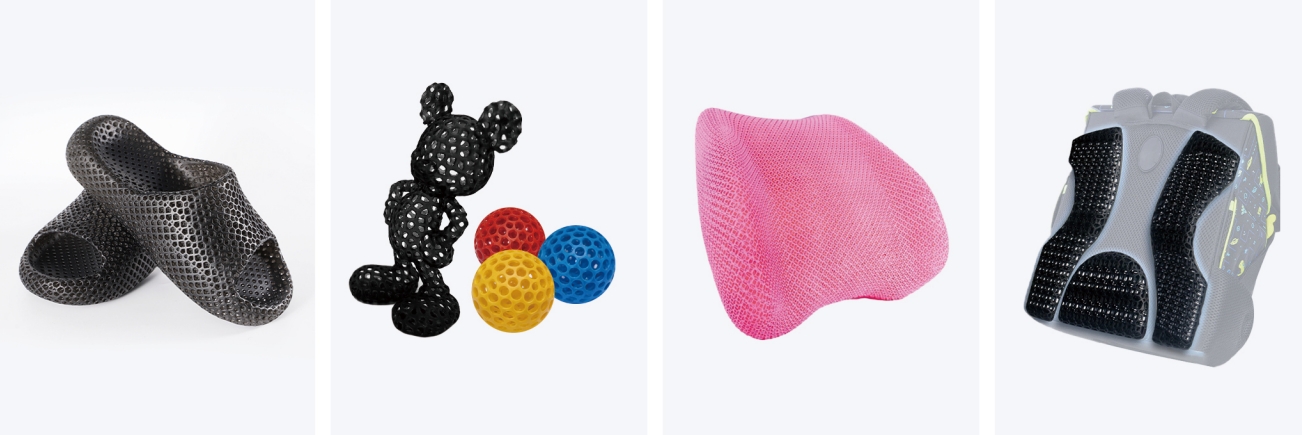

Industrial Flexible Resin Printing for Real Product Development
Yidimu Flex Pro is an industrial flexible resin 3D printer developed for elastic material applications. It is suitable for 50A–90A Shore hardness flexible materials and supports the production of soft structures with customized geometry, hollow lattice design and complex surface texture.
For manufacturers, product development teams and model workshops, Flex Pro helps reduce dependence on traditional mold opening during early-stage development. Teams can test structure, shape, softness and wearing feel before moving to tooling or small-batch production.
Technical Specifications
| Specification | Yidimu Flex Pro |
|---|
| Product Name | Yidimu Flex Pro |
| Product Type | Flexible Resin 3D Printer |
| Printing Technology | Light-curing 3D printing |
| Build Volume | Customizable |
| XY Display Accuracy | 46μm |
| Accuracy | ±0.05mm |
| Layer Thickness | 0.02mm–0.1mm |
| Printing Speed | 65mm/h |
| Printing Temperature | 15°C–40°C |
| Light Source | 405nm UV |
| Wavelength | 405nm |
| Resolution | 7680 × 4320, customizable |
| Compatible Resin | 405nm UV-compatible flexible photopolymer resin |
| Supported Material Hardness | 50A–90A flexible material applications |
| Software | Chitubox / Chitubox Pro |
| Operating System | Windows 7, Windows 10 and above |
| File Format | STL / OBJ |
| Power Supply | AC100V–240V / 50–60Hz |
| Rated Power | 400W |
| Machine Size | 700(L) × 700(W) × 1800(H) mm |
| Machine Weight | 150kg |
| Working Environment | Temperature 10°C–30°C, humidity 30%–90% |
| Application | Shoe samples, sports equipment, medical rehabilitation accessories, flexible robotics, wearable parts, industrial elastic models |
| After-sales Support | Technical support, parameter support and application review available; |
What is Yidimu Flex Pro used for?
Yidimu Flex Pro is used for industrial flexible resin 3D printing. Typical applications include shoe samples, elastic cushioning parts, protective components, medical rehabilitation accessories, wearable soft structures, flexible robotics and industrial model making.
Is Flex Pro suitable for shoe sample factories?
Yes. Flex Pro is suitable for shoe sample development, especially when teams need to test sole geometry, cushioning structure, surface texture and flexible part design before mold production.
What resin is compatible with Flex Pro?
Flex Pro is designed for 405nm UV-compatible flexible photopolymer resin materials. The product information mentions suitability for 50A–90A Shore hardness flexible material applications. Final resin selection should be confirmed according to the target part performance.
Can the build size be customized?
Yes. The product information states that the build size can be customized. Customers should provide the maximum model size and application requirements before ordering.
What post-processing is required after printing?
Printed flexible resin parts usually require cleaning, support removal and UV curing. The exact cleaning method, curing time and handling process should be confirmed according to the resin type and part thickness.
Is Flex Pro suitable for dental applications?
Flex Pro is mainly positioned for flexible resin applications such as elastic components, shoe samples, wearable parts and rehabilitation-related soft accessories. If the project is for dental models, surgical guides or other dental workflows, Yidimu should review the required resin, printer type and application before recommendation.
Can I request sample printing before purchase?
Yes. Customers can send 3D files, target material requirements and application details for sample printing evaluation. This is recommended for flexible parts with special hardness, wall thickness, hollow structure or surface texture requirements.
What should be confirmed before ordering?
Please confirm the application, maximum model size, target hardness, resin type, surface finish, printing frequency, file format, post-processing requirements, installation environment and whether sample printing is needed.
Does Yidimu provide technical support?
Yes. Yidimu can provide support for machine operation, printing parameters, application review and troubleshooting. The final after-sales scope should be confirmed with the sales team before ordering.
Send Your Flexible Printing Requirements
Looking for an industrial flexible resin 3D printer for elastic parts, shoe samples, wearable structures or customized soft components?
Send us your application details, maximum model size, target material hardness, resin requirements, surface finish expectations and sample printing needs. Yidimu can help review the printing feasibility, equipment configuration and post-processing workflow before quotation.
